YJFIRST QR Barcode Module YJ-ES103 Scanner Engine OCR Reader USB Interface in Stock
Features of the Scanning Engine Head
1. Advanced Imaging & Optical System
High-Resolution Sensor: Equipped with a global shutter CMOS sensor for crisp image capture without motion blur.
Multi-Focus Support: Offers both fixed-focus and auto-focus options to handle various working distances.
Adjustable Illumination: Integrated LED illumination with customizable brightness settings for optimal performance in low-light or
high-glare environments.
2. Superior Decoding Performance
Wide Code Symbology Support: Decodes all common 1D (Code 128, UPC/EAN), 2D (QR, Data Matrix, PDF417), and postal codes.
High-Speed Processing: Achieves decoding speeds as fast as 0.1 seconds, enabling real-time application workflows.
Omni-Directional Reading: Captures and decodes codes from any orientation (360 degrees) without requiring the user to
align the scanner.
Application Scenarios for the Scanning Engine Head
Retail & Logistics: Enable instant product lookup, inventory management, and parcel tracking in warehouses or smart stores.
Manufacturing: Integrate with assembly line robots for part identification and quality control automation.
Healthcare: Streamline medical device tracking and patient record access in hospitals.
Smart Offices: Accelerate document digitization and asset management workflows.
Technical parameters of scan code engine head
|
Scan performance
|
|
sensor
|
640×480 CMOS
|
|
lighting
|
white light LED
|
|
focusing
|
glow LED
|
|
Read code system
|
2D:QR Code, Data Matrix ,PDF417
|
|
1D:Code 128,Ean-13 ,Ean-8,UPC-E,UPC-A,ITF-25(Interleaved 2 0f 5),
Code39,Code93,Codabar
|
|
Read accuracy
|
≥5mil
|
|
contrast ratio
|
≥20%
|
|
Scan the Angle
|
The rotation angle was 360°, elevation angle ± 55°, and bias angle ± 55°
|
|
angle of field
|
Horizontal is 36°, and 27° vertical
|
|
Mechanical / electrical parameters
|
|
communication interface
|
TTL-232, USB (HID-KBW, virtual serial port)
|
|

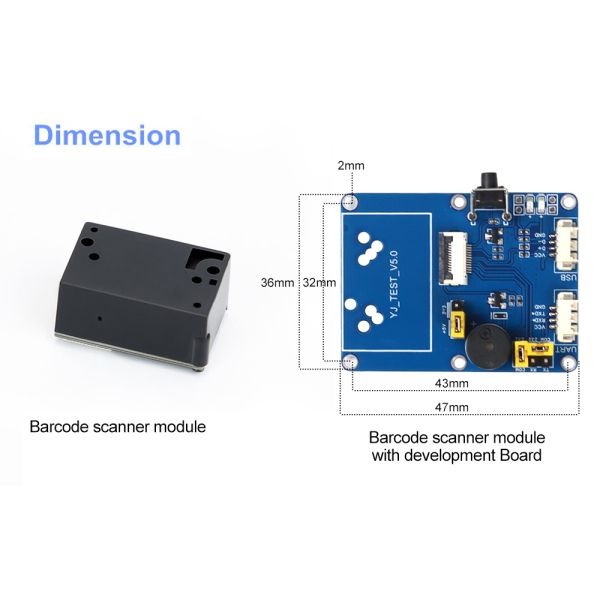

Appearance size
|
20.98*14.82*11.11mm
|
|
Operating voltage (current / power consumption)
|
DC 5.0V/150mA/750mW
|
|
Standby current
|
70mA
|
FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us for
more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents
you provide.
Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing, shock
resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient explanations
via email or call in time.
