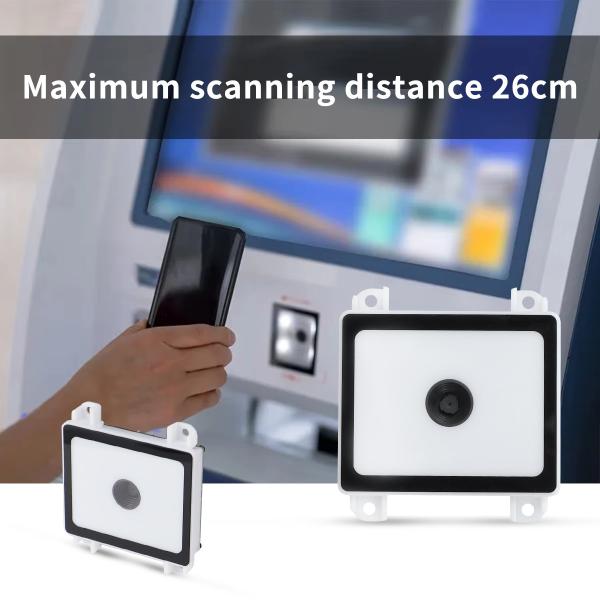

Wired Embedded Barcode Scanner 2D Barcode Scanning Machine For Supermarket

Brand Name : YJFIRST

Model Number : YJ-ES908

Certification : CE, ROHS, FCC, IEC, FDA

Place of Origin : Guangdong, China

MOQ : 1Pcs

Price : 1 - 100 pieces $17 100 -500 pieces $16 500 -1000 pieces $15

Payment Terms : T/T ，D/P，D/A ，L/C ， MoneyGram ，Western Union

Supply Ability : 20000pcs/month

Delivery Time : 3-7 work days

Packaging Details : Gift box

Product name : Embedded Barcode Scanner

color : White

Interface : USB2.0/USB3.0

Application : commercial,industry

Decode Capabilities : 2D Code and barcode

Contact Now

YJFIRST Most Popular Qr Code Wired Barcode Scanner Scanning Machine 2D Desktop Scanner bar Code Scanner for Supermarket
Product description

This is a product description for the YJFIRST Qr Code Wired Barcode Scanner. It is designed for efficient and reliable scanning in various environments, particularly supermarkets and self-service terminals.

Features of embedded barcode scanners
  • Mini size, widely used in wireless machine, self-service terminal.
  • Read all mainstream 1D 2D barcodes in the market easily.
  • High brightness, dark environment scanning, low power consumption.
  • Interface: USB, TTL.
  • Support multiple systems and languages, secondary development.
Advantages of Embedded Scanners
  1. Decoding Technology: Integrates independently developed core decoding technology for rapid reading of barcodes of diverse qualities.
  2. Technical Support: Delivers comprehensive secondary development support and an SDK package, compatible with multiple systems.
  3. Diverse Interface Options: Standardly equipped with USB, TTL, and RS232 interfaces, whose protocols fulfill diverse interface needs.
  4. Design & Build: Features a standard window structure with high integration, facilitating easy embedding into various terminal equipment; equipped with large-area uniform fill light.
  5. Decoding & Scanning Capabilities: Supports 1D/2D barcode recognition on paper and screen substrates.
  6. Recognition Resolution: 300,000 pixels.
  7. Recognition Precision: 5mil.
  8. Recognition Speed: 1/60 second.
Technical specifications of the embedded scanner
Capability
Collection methodImage type, CMOS Sensor
Picking rate1 / 60 Seconds
Field of view AngleHorizontal 62°, and 48.5° vertical
LED
Fill-in lightWhite
Physical parameters
size
(Long, width and height)		61mm ×51mm ×16.4mm
WeightLess than 30g
Joggle
Joggle4 PIN cable socket: USB KBW
4 PIN cable socket: Serial port TTL 232 or RS232 (5V or 3.3V)
Scan patternCommand mode / induction mode / trigger mode
Read success tipsThe LED and the buzzer
Data line (optional)4PIN straight line
Electrical parameters
Input voltage5V or 3.3V
Working current125mA
Standby current85m A

Wired Embedded Barcode Scanner 2D Barcode Scanning Machine For Supermarket
Wired Embedded Barcode Scanner 2D Barcode Scanning Machine For Supermarket
Wired Embedded Barcode Scanner 2D Barcode Scanning Machine For Supermarket

FAQ
Q: Can you send a sample?
A: Yes, YJFIRST welcomes sample orders to test. Please contact us for more details before placing a sample order.
Q: Can we have our logo or company name printed on the product or package?
A: Yes, printing with the logo or company name is acceptable; it will be accomplished by silk printing. Please contact us for more details.
Q: What's the shipping method?
A: There are DHL, FedEx, TNT, and UPS. We can also ship the goods using your shipping account or other express agents you provide.
Q: What's the payment method?
A: We accept online orders, PayPal, T/T, LC, Western Union, and MoneyGram.
Q: How about your product warranty?
A: Our formal guarantee period is one year after delivery.
Q: How is your quality control?
A: We have a professional QC team and testing machines (engine age testing, wire bending machine, switch life testing, shock resistance testing). CE, FCC & ROHS certified.
Q: If I come across any problems during product use, where can I get support?
A: We provide technical support 24/7. Please send all your questions to us and we will give you professional and patient explanations via email or call in time.
